3 Series Compact Tractors
SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm

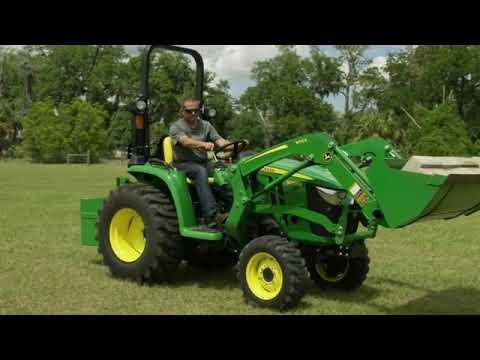

3038E / 3038E Compact Utility Tractorinfo
3038E / 3038E Compact Utility Tractor Details
- Standard four-wheel drive (4WD) for maximum traction
- Hydro transmission with Twin Touch™ pedals for ease of use
- Category 1 3-pt hitch compatible with dozens of implements
For pricing and additional discounts, see your local John Deere Dealer.
Key Specs
- Engine power (gross)SAE J1995 rated power: 27.4 kW
36.7 hp
37.2 PS at 2500 rpm - Power take-off (PTO) power22.4 kW
30 hp - Steering hydraulics15.0 L/min
4.0 gpm - Implement hydraulics20.2 L/min
5.3 gpm - Hitch typeCategory 1
- Lift capacity, 24-in. behind link arms615 kg
1356 lb - Standard transmission; forward/reverseHydrostatic transmission (HST)
- Cruise controlOptional
- Approximate shipping weight (open-station; cab)Open operator station (OOS): 1210 kg
2668 lb
Cab: Not applicable - Wheelbase1593 mm
62.7 in.
Engine
- FamilyFYDXL1.57TDA
EYDXL1.57TDA
GYDXL1.57TDA - ManufacturerYanmar
- Engine model3TNV86CT-NJT2
- Engine power (gross)SAE J1995 rated power: 27.4 kW
36.7 hp
37.2 PS at 2500 rpm - Power take-off (PTO) power22.4 kW
30 hp - Rated engine speed2500 rpm
- TypeDiesel
- Injection pump typeHigh pressure common rail direct injection
- AspirationTurbocharged
- Emissions complianceFinal Tier 4
- Cylinders/displacement3 / 1.57 L
3 / 95.7 cu in. - Number of cylindersThree
- Cylinder linersCast-in-block
- Bore and stroke86 x 90 m
3.4 x 3.54 in. - Compression ratio19.1:1
- LubricationPressurized
- Cooling systemWater Pump
- Air cleanerDual element
- Engine torque at rated speed104.7 Nm
77.2 lb-ft - Fuel tank capacity28.5 L
7.5 gal.
Electrical
- Battery size500 CCA
- Alternator (12-V)55 amp
- Starter size1.4 kW
1.9 hp
Fuel system
- TypeHigh pressure common rail direct injection
Transmission
- Standard transmission; forward/reverseHydrostatic transmission (HST)
- Left-hand reverserNo
- Final driveSpur gear
- BrakesWet disk
- SteeringPower steering
- Axle capacityFront
880 kg
1940 lb
Rear
1200 kg
2645 lb - CreeperNo
- Cruise controlOptional
- Differential lockYes
Hydraulics
- TypeOpen center
- Pump rated outputSteering
15.0 L/min
4.0 gpm
Implement
20.2 L/min
5.3 gpm
35.2 L/min
9.3 gpm - Pump typeDual gear
- Maximum operating pressure172 bar
2495 psi - Draft control sensingPosition control
- Remote control valves availableUp to two (optional)
3-point hitch
- TypeCategory 1
- Lift capacity, 24-in. behind link arms615 kg
1356 lb
Power take-off (PTO)
- StandardRear - 540 rpm
- ControlIndependent
- ClutchWet disk
- Brake (for mid and rear PTO)Wet disk
Fluid capacities
- Crankcase with filter4.5 L
4.8 gal. - Transmission and hydraulic system20.8 L
22 qt
Final drive
- TypeSpur gear
- Differential lockYes
Operator station
- Rollover protective structureType
Foldable - Platform - flat/straddleStraddle
- Gear shift location - console/floorLeft-hand side
Cab
Dimensions
- Wheelbase1593 mm
62.7 in. - Front axle clearanceMinimum: 299 mm
11.8 in.
Maximum: 333 mm
13.1 in. - Turning radius without brakes2.9 m
9.4 ft - Approximate shipping weight (open-station; cab)OOS: 1210 kg
2668 lb
Cab: Not applicable
Tires
- FrontR1 Bar: 7-14
R3 Turf: 27x8.5-15
R4 Industrial: 25x8.5-14
R4 Industrial: 27x8.5-15 - RearR1 Bar: 11.2-24
R3 Turf: 41x14-20
R4 Industrial: 15-19.5
R4 Industrial: 43x16-20
Miscellaneous
Additional information
