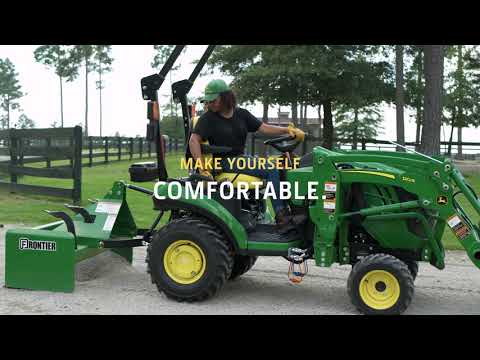

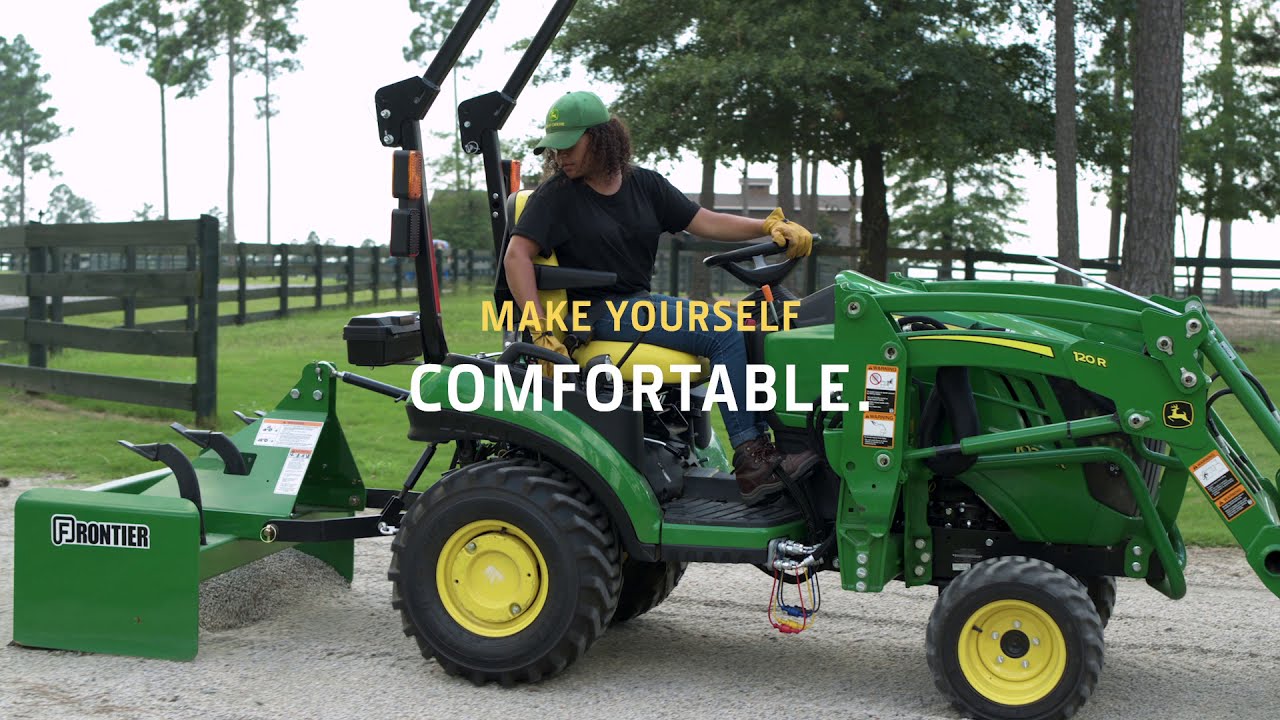

1 Series Sub-Compact Tractors1025R with 120R LoaderSAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm
1025R / 1025R Sub-Compact Tractorinfo
1025R / 1025R Sub-Compact Tractor Details
- Standard LED headlights and fender lights
- Premium Operator Station with deluxe seat suspension and armrests
- AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
For pricing and additional discounts, see your local John Deere Dealer.
Key Specs
- Engine power (gross)SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm - Power take-off (PTO) power13.6 kW
18.2 hp - Steering hydraulics13.2 L/min
3.5 gpm - Implement hydraulics13.2 L/min
3.5 gpm - Hitch typeLimited Category 1
- Lift capacity, 24-in. behind link arms344 kg
758 lb - Standard transmission; forward/reverseHydrostatic - two range
- Cruise controlStandard
- Approximate shipping weight (open-station; cab)Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb - Wheelbase1450 mm
57.1 in.
Engine
- ManufacturerYanmar®
- Engine model3TNV80F-NCJT
- Engine power (gross)SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 seconds - Power take-off (PTO) power13.6 kW
18.2 hp - Rated engine speed3200 rpm
- TypeDiesel
- Injection pump typeIndirect injection
- AspirationNatural
- Emissions complianceFinal Tier 4
- Cylinders/displacementThree cylinders: 1.267 L
77.3 cu in. - Number of cylindersThree
- Cylinder linersCast-in-block
- Bore and stroke80 x 84 mm
3.15 x 3.31 in. - Compression ratio23.1:1
- LubricationPressurized
- Cooling systemWater pump
- Air cleanerDual element with mechanical restriction indicator
- Engine torque at rated speed53.1 Nm
39.2 lb-ft - Fuel tank capacity24 L
6.3 U.S. gal.
Electrical
- Battery size500 CCA
- Alternator (12-V)40 amp
- Starter size1.2 kW
1.6 hp
Fuel system
- TypeIndirect injection
Transmission
- Standard transmission; forward/reverseHydrostatic - two range
- Left-hand reverserNo
- Final driveSpur gear
- BrakesWet disc (left-hand pedal)
- SteeringPower
- Axle capacityFront
612 kg
1349 lb
Rear
715 kg
1576 lb - CreeperNo
- Cruise controlStandard
- Differential lockYes
Hydraulics
- TypeOpen center
- Pump rated outputSteering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm - Pump typeSingle gear
- Maximum operating pressure138 bar
2000 psi - Draft control sensingPosition control
- Remote control valves availableThree
3-point hitch
- TypeLimited Category 1
- Lift capacity, 24-in. behind link arms344 kg
758 lb
Power take-off (PTO)
- StandardRear: 540 rpm
Mid: 2100 rpm - ControlIndependent
- ClutchWet disk
- Brake (for mid and rear PTO)Wet disk
Fluid capacities
- Crankcase with filter2.7 L
2.9 gal. - Transmission and hydraulic system12.3 L
3.2 gal.
Final drive
- TypeSpur gear
- Differential lockYes
Operator station
- Rollover protective structureType
Foldable
Yes - Platform - flat/straddleOne-piece semi flat
- Gear shift location - console/floorLeft-hand side
Cab
- Air conditioning, temperature differentialHeat only
- DoorsTwo
- Seat equipmentPremium seat
Dimensions
- Wheelbase1450 mm
57.1 in. - Front axle clearance195 mm
7.7 in. - Turning radius without brakesOutside front tire: 2.51 m
8.2 ft - Limited slip differentialNo
- Approximate shipping weight (open-station; cab)Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Tires
- FrontR3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10 - RearR3 Turf: 26x12-12
R4: 26x12-12 - Front tread range931 mm
36.7 in. - Rear tread spacing895 mm
35.2 in.
Miscellaneous
- ToolboxYes
